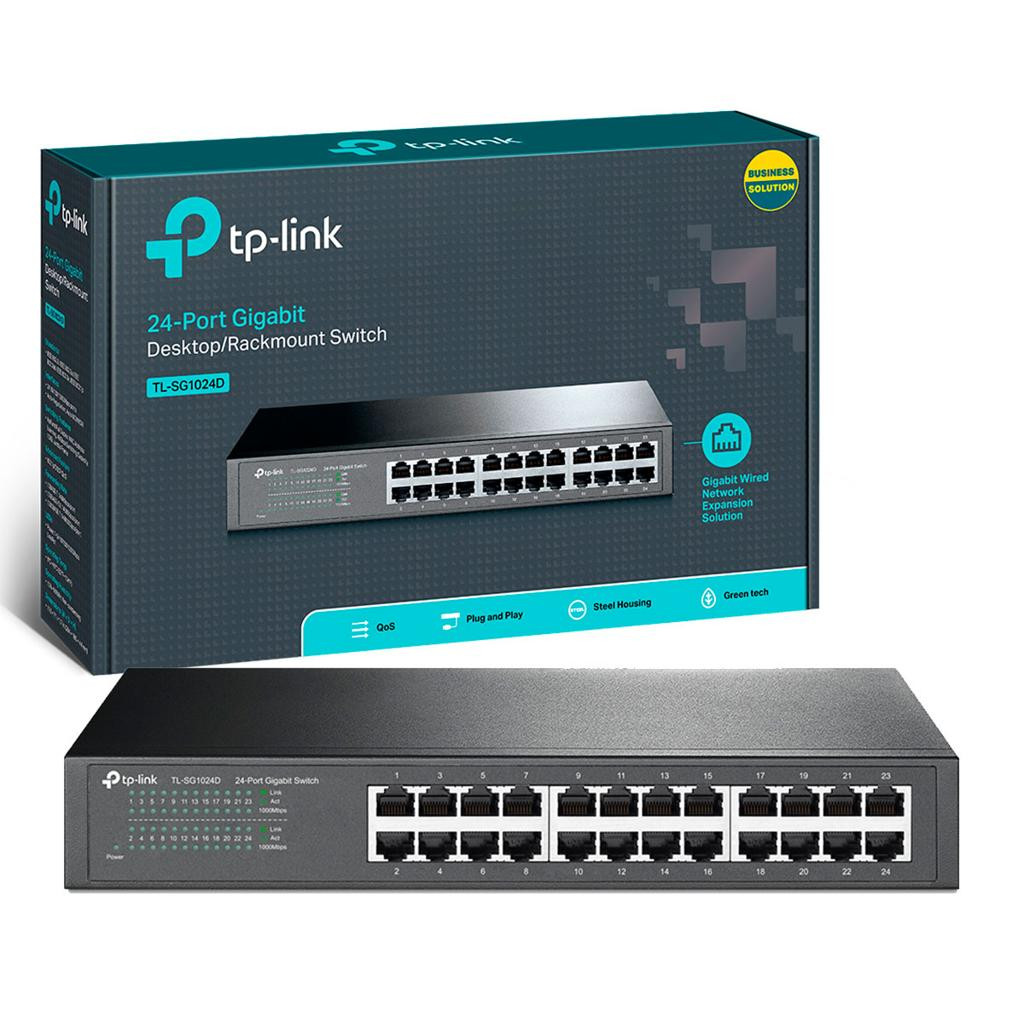

TP-Link TL-SG1024D 24-Port Gigabit Ethernet Switch

Sold by ZagoTech Official Store Verified
₦115,000
New
Backed by our 1-year warranty.
Specifications
Device type
Network Switch
Speed
10/100/1000 Mbps
Ports
24x 10/100/1000Mbps RJ45 Ports
Coverage
48Gbps switching capacity
Colour
Grey
See the full specifications →
Best used for
This is a 24-port unmanaged Gigabit switch used to expand wired network connections in an office or home. It connects multiple devices like computers, printers, and network storage to your router using Ethernet cables. It requires no configuration and features energy-saving technology that lowers power consumption when ports are idle.

Overview

The TP-Link TL-SG1024D 24-Port Gigabit Ethernet Switch is a networking. Sold by ZagoTech with a 1-year warranty.

Performance

Very well suited to connecting many wired devices. Very well suited to file transfers, NAS & servers.

Who it suits

A good fit for offices with many wired desks and home labs & small offices.

Worth knowing

Not built for powering cameras or access points (no PoE) and VLANs & managed networks.

Full specifications

ZagoTech configurationThis unit

The exact item you receive. Where it differs from the manufacturer's specification below, this is what counts.

Condition
New
Warranty
1-year hardware warranty

Manufacturer specification of the TP-Link TL-SG1024D, from the manufacturer's published product data.

General7
Brand
TP-Link
Model
TP-Link TL-SG1024D
Model number
TL-SG1024D
Device type
Network Switches
Colour
Grey
Stackable
Yes
LED indicators
Yes
Wired12
LAN ports
24× RJ-45
Port speed
Gigabit Ethernet (10/100/1000)
PoE
No
Gigabit Ethernet (copper) ports
24
Power connector
DC-in jack
Networking standards
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support
No
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Security & Management2
Managed / unmanaged
Unmanaged
Supported network protocols
CSMA/CD, TCP/IP
Physical2
Dimensions
294 mm × 180 mm × 44 mm (W × D × H)
Mounting
Yes
Data transmission6
Switching capacity
48 Gbit/s
Forwarding rate
35.7 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000
Power4
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
13.08 W
Certifications & Environment6
Operating temperature
0 - 40 °C
Storage temperature
-40 - 70 °C
Operating relative humidity
10 - 90%
Storage relative humidity
5 - 90%
Heat dissipation
44.63 BTU/h
Certification
FCC, CE, RoHS
Package contents & dimensions3
In the box (manufacturer)
AC cable
User guide
Yes
Rack mount kit
Yes
From the manufacturer4

In TP-Link's own words, about the model.

  • 24 10/100/1000Mbps ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
  • Plug & play design

What can this switch handle?

Rated from this model's published specification — 24 ports, Gigabit, unmanaged — against published rules, not guesswork. Tap a rating for the detail.

Wired Devices Excellent

Very well suited to connecting many wired devices.

  • Connecting many wired devices (desks, printers, cameras) Excellent
Speed Excellent

Very well suited to file transfers, NAS & servers.

  • File transfers, NAS & servers Excellent
Power over Ethernet Not recommended

Not suited to powering CCTV cameras, IP phones & access points. Powering CCTV cameras, IP phones & access points is rated not recommended; excellent would take Power over Ethernet.

  • Powering CCTV cameras, IP phones & access pointsFor excellent: Power over Ethernet Not recommended
Management Limited

Only basic use for VLANs, monitoring & network control. VLANs, monitoring & network control is rated limited; excellent would take a managed switch.

  • VLANs, monitoring & network controlFor excellent: a managed switch Limited

Recommended for

  • Offices with many wired desks
  • Home labs & small offices

Not ideal for

  • Powering cameras or access points (no PoE)
  • VLANs & managed networks
